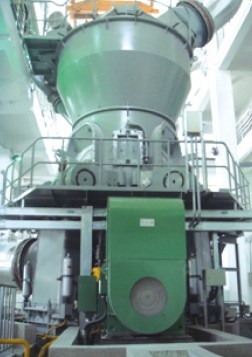

To meet market demand, Sinoma-tec has developed Vertical Roller Coal Mill and Vertical Roller Mill for Desulfurization. In 2004, the first Vertical Roller Coal Mill was put into operation, while in 2006, the first limestone mill was successfully put into operation. Judging from the operation data, the design targets were met and even exceeded the design indices. Thus, our products are wildly used in the cement, electricity, metallurgy, chemical engineering, coal industries and so on.
| Vertical Coal Mill Data Sheet |
| Model |
Dia of Table
(mm) |
Installation Power
(kw) |
Max. Feeding Size
(mm) |
Capacity
(t/h) |
| TRMC36.4 |
3600 |
1250 |
50 |
65~85 |
| TRMC31.3 |
3100 |
1000 |
50 |
60~70 |
| TRMC28.3 |
2800 |
710 |
50 |
40~50 |
| TRMC23.3 |
2300 |
640 |
50 |
35~45 |
| TRMC20.3 |
2000 |
440 |
40 |
25~30 |
| TRMC20.2 |
2000 |
335 |
40 |
20~25 |
| |
NOTES: Raw Coal Feed Moisture≤15%; Outlet Moisture≤1.0%;Fineness R80µm=10%~15%(bituminous coal), R80µm=1%~5%(anthracite),Raw Coal Grindability of Coal Inlet HGI=45~80 |
|
