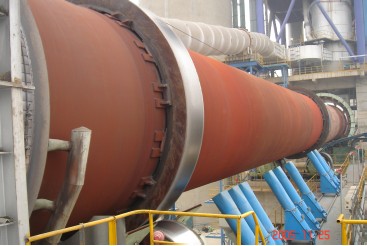

Rotary Kiln With Three Supports Structural Features
●The kiln shell is made of rolled steel plates; its structure is optimized by computer software, and features" longitudinal flexible and transverse rigid”, which improved the loading of supporting device and stability of refractory lining,
●The supporting roller bearings features smaller width over diameter ratio L/D, leading to its higher reliability.
●The special high-started torque motor for cement industry rotary kiln is applied for driving system.
●The sealing of labyrinth plus spring pressing with asbestos heat isolation layers attached, is applied higher so that reliability and longer service life of sealing are achieved.
Data Sheet of Rotary Kiln With Three Supports
| Size |
Basic Parameter |
Motor Power
kW |
NO. of
Support |
NO. of thrust
Roller |
Type of
Thrust Roller |
Rotation Speed
r/min |
Inclination
% |
Capacity
t/d |
| 3.0×48 |
0.696-3.48 |
3.5 |
700 |
100 |
3 |
1 |
Mechanical |
| 3.2×46 |
0.602-3.01 |
3.5 |
1200 |
125 |
3 |
1 |
hydraulic |
| 3.2×50 |
0.396-3.965 |
3.5 |
1200 |
190 |
3 |
1 |
hydraulic |
| 3.3×52 |
0.391-3.91 |
3.5 |
1200 |
190 |
3 |
1 |
hydraulic |
| 3.5×54 |
0.431-4.31 |
3.5 |
1800 |
250 |
3 |
1 |
hydraulic |
| 4.0×60 |
0.35-3.5 |
3.5 |
2000 |
250 |
3 |
1 |
hydraulic |
| 4.0×60 |
0.396-3.96 |
3.5 |
2500 |
315 |
3 |
1 |
hydraulic |
| 4.3×64 |
0.396-3.96 |
3.5 |
3000 |
420 |
3 |
1 |
hydraulic |
| 4.3×66 |
0.396-3.96 |
3.5 |
3500 |
420 |
3 |
1 |
hydraulic |
| 4.3×60 |
0.403-4.03 |
3.5 |
3000 |
400 |
3 |
1 |
hydraulic |
| 4.6×68 |
0.398-3.98 |
3.5 |
4000 |
560 |
3 |
1 |
hydraulic |
| 4.7×75 |
0.396-3.96 |
3.5 |
4000 |
500 |
3 |
1 |
hydraulic |
| 4.8×72 |
0.396-3.96 |
3.5 |
5000 |
630 |
3 |
1 |
hydraulic |
| 4.8×74 |
0.396-3.96 |
3.5 |
5000 |
710 |
3 |
1 |
hydraulic |
| 5.0×72 |
0.4-4 |
3.5 |
5500 |
710 |
3 |
1 |
hydraulic |
| 5.2×76 |
0.45-4.5 |
3.5 |
6000 |
2x530 |
3 |
1 |
hydraulic |
| 6.0×96 |
0.4-/1 |
3.5 |
10000 |
2x950 |
3 |
1 |
hydraulic |
Rotary Kiln With Two Supports
Rotary kiln with two supports is a kiln of L/D<12.5, with two support devices. The advantages are as follows:
●Reduce energy consumption
●Improve the quality of clinker
●Greater adaptability to the raw material and fuel
●Brick consumption is significantly reduced
●Improve equipment reliability, avoid mechanical overload
●Reduce investment in infrastructure
●Reduce repair and maintenance costs
Data Sheet of Rotary Kiln with Two Supports
| Rotary Kiln Specification |
Design Production |
Max Production |
| D(m)×L(m) |
t/d |
t/d |
| 4.2 |
50 |
2500 |
2700 |
| 4.4 |
52 |
3300 |
3600 |
| 4.8 |
56 |
4000 |
4500 |
| 5 |
60 |
5000 |
5500 |
| 5.2 |
62 |
6000 |
6600 |
|
