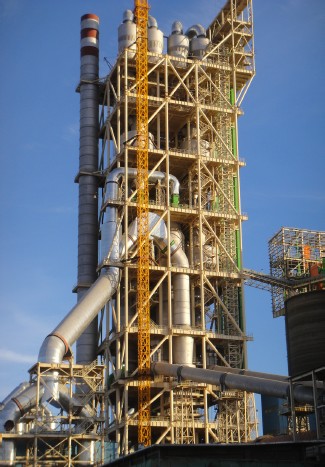

The new preheater system is a comprehensive upgrading system based on the research of the existing pre-calcination system along with the actual situation of the raw material and fuel in some cement plants, including technology, environmental performance and design optimization, to low resistance and low consumption, to lower investment costs, reduce the emissions of harmful components such as NOx, SO2 and so on. The comprehensive utilization of resources will come true. It helps the cement industry improve the cleanness level、heat recovery rate and waste utilization and develop toward the ecological direction, so that the economic indicators and environmental indicators of preheater system will be enhanced completely.
Technical Characteristics of the new Preheater system
●Productivity of 1000t/d~12000 t/d
●Great adaptability to different raw material and fuel. Simple structure and easy to operate.
●Different solutions for different fuels, e.g. bitumite, anthracite, inferior coal, heavy oil, crude oil, natural gas.
●Equipped with specialized designing of by-pass system to deal with the primary fuel of high-alkali or high-chlorine.
●Using fractional combustion method, the denitrogenation rate is 50%; the adoption of SNCR technique, the denitrogenation rate is increased to 70%.
●Techonlogy of disposing daily garbage , industrial waste, sludge, toxic waste .Changing the carbide slag, phosphoric acid slag, sludge and other types of industrial waste into harmless materials to eliminate environment pollution.
Structure Characteristics
●Large capacity, high efficiency on heat conversion;
●Adaptability to various kinds of coal quality, heavy oil and natural gas.
●Proper layout of the calciner burner along with the reasonable distribution of tertiary air, to reduce NOx emission.
●Cyclone with high separation efficiency, low pressure loss. Sliced inner tube
●Made of new heat resistant materials, simple replacement and long service life.
Preheater Data Sheet
|
Capacity(t/d) |
Calcining Rate |
Outlet Temp(°C) |
Strucure of Inner Tube |
Model of Calciner |
1000t/d
Single String |
1000 |
|
≤340 |
|
TC-D.D |
2000t/d
Single String |
2000 |
≤330 |
|
TDF |
2000t/d
Double String |
2000 |
≤330 |
|
TC-D.D |
2500t/d
Single String |
2500 |
≤325 |
Steel Plate Welding |
TDF/TFD/TSD |
2500t/d
Double String |
2500 |
≤325 |
TDF |
2750t/d
Double String |
2750 |
≤325 |
Segment Slice Type |
TDF |
3000t/d
Double String |
3000 |
≤325 |
TDF/TWD/TFD |
4000t/d
Double String |
4000 |
≤325 |
|
TC-D.D/TDF/TFD |
5000t/d
Double String |
5000 |
≥92% |
≤325 |
|
TSD/TDF |
5500t/d
Double String |
5500 |
≤320 |
|
TTF |
6000t/d
Double String |
6000 |
≤320 |
|
TDF |
10000t/d
Double String |
10000 |
≥93% |
≤300 |
|
NST |
|
